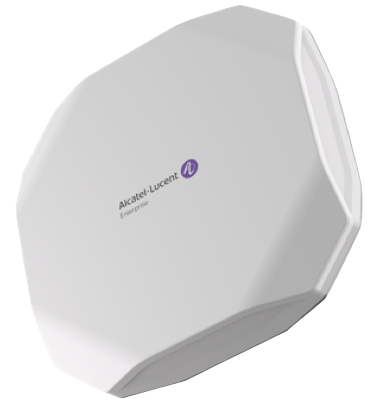

Alcatel Access Point Stellar 1101 Indoor [OAW-AP1101-RW] + 1 Year License

Mounting

• Wall mount, ceiling tile and desktop



Power

Maximum (worst case) power consumption:
- 10 W (802.3at PoE or DC)

Direct DC source:
- 48 V DC nominal, +/- 5%

Power over Ethernet (PoE):
- 48 V DC (nominal) 802.3af/802.3at compliant source
- When both power sources are available, DC power takes priority



Interfaces

• 1 10/100/1000 Mb/s full/halfduplex Ethernet (RJ-45)
• PoE-PD: 48 V DC (nominal) 802.3af or 802.3at PoE
• Security lock slot
• Reset button: Factory reset



Visual Indicators (Tri-color LEDs)

For system and radio status:
- Red flashing: System abnormal, link down
- Red light: System startup
- Red and blue rotate flashing: System running, OS upgrading
- Blue light: System running, dual bands working
- Green flashing: System running, no SSID created
- Green light: System running, single band working
- Red, blue and green rotate flashing: System running, use for location of an AP



Antenna

- Built-in 22:2, 3.4 dBi @ 2.4 GHz, 2.55 dBi @ 5 GHz



Capacity

Up to 8 SSID per radio (total 16 SSID)

Support for up to 255 associated client devices per AP



Radio specification

- DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power

- Short guard interval for 20-MHz, 40-MHz and 80-MHz channels

- Transmit beamforming (TxBF) for increased signal reliability and range
