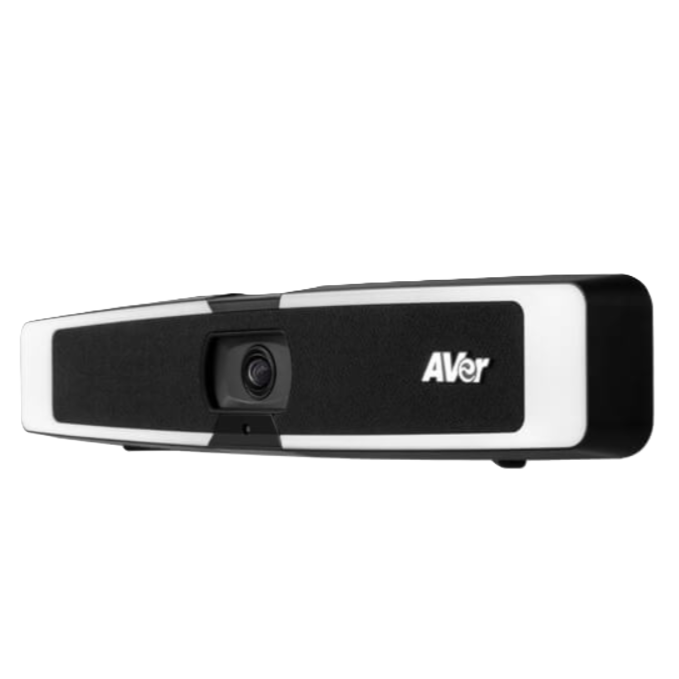

AVer VB130 4K Video Bar

Camera

• 4K optics lens, 120° FOV, up to 5X zoom*
• Sony 4K sensor: ultra-crystal-clear image in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• Adjustable audio fence: freedom to define your meeting area
• Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment**
• Supports autofocus: SmartFrame function automatically adjusts the FOV to track and fit all participants on screen
• SmartSpeaker: Voice triggered tracking people or specific preset areas.
• True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
• Mirror, flip, AE, white balance: auto/manual override via Room Management (PTZApp 2)
• Minimum focus distance: 60 cm
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
• 10 camera presets (through remote control and IP web page)

Audio

• Beamforming microphone array: 5 microphones, 5-meter pickup range
• Echo cancellation and background noise suppression
• Supports an expansion microphone
• 6W speaker with a professional bass port tuned for communication
• 180Hz–20kHz speaker frequency response
• Output volume: 94dB SPL +/-2dB at 0.5 meters

Connectivity

• 12V/2A power adapter
• Mini-B for expansion microphone connection
• USB Type-B 3.1 connector, backward compatible with USB 2.0
• RJ45 port for Ethernet
• USB 2.0 Type-A for wireless connection

Video Format

• YUV, YUY2, MJPEG
• Network video compression format: H.264
• Network protocols: RTSP, RTMP*

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UAC 1.0 (USB audio)

Control

• IR remote control
• WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
• UVC/UVA plug-and-play
• Room Management (PTZApp 2)

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

Control

• IR remote control
• VISCA/pelco P/pelco D via RS-232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome. (Not support IE)
• OSD setting: HDMI out to TV monitor
• Room Management (PTZApp 2)

Mount

• Camera wall-mount bracket
• Screen mount kit (optional)
• TV VESA mount (optional)

System Requirement

• Windows® 7/10/11
• MacOS X 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later

Power Supply

• AC 100V–240V, 50/60 Hz
• Consumption: 12V/2A

Software Tools

• Room Management (PTZApp 2) : Supports Windows® 7 or later, macOS® 11.6 or later
• Enterprise Management (PTZ Management) : Supports Windows® 10 or later
• EZManager 2 : Supports Windows® 7 or later
• EZLive : Supports Windows® 7 or later

Environmental Data

• Operation temperature: 0°C ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 20% ~ 80%

Dimensions

• Package dimensions: 406(L)x146(W)x189(H) mm
• Package weight: 2.358 kg
• Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
• Remote control: 149.72 x 42.3 x 19.29 mm/50g

Security and Mount

• Kensington lock
• 1/4' tripod mounting screw
• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

Compatible Applications

• Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
