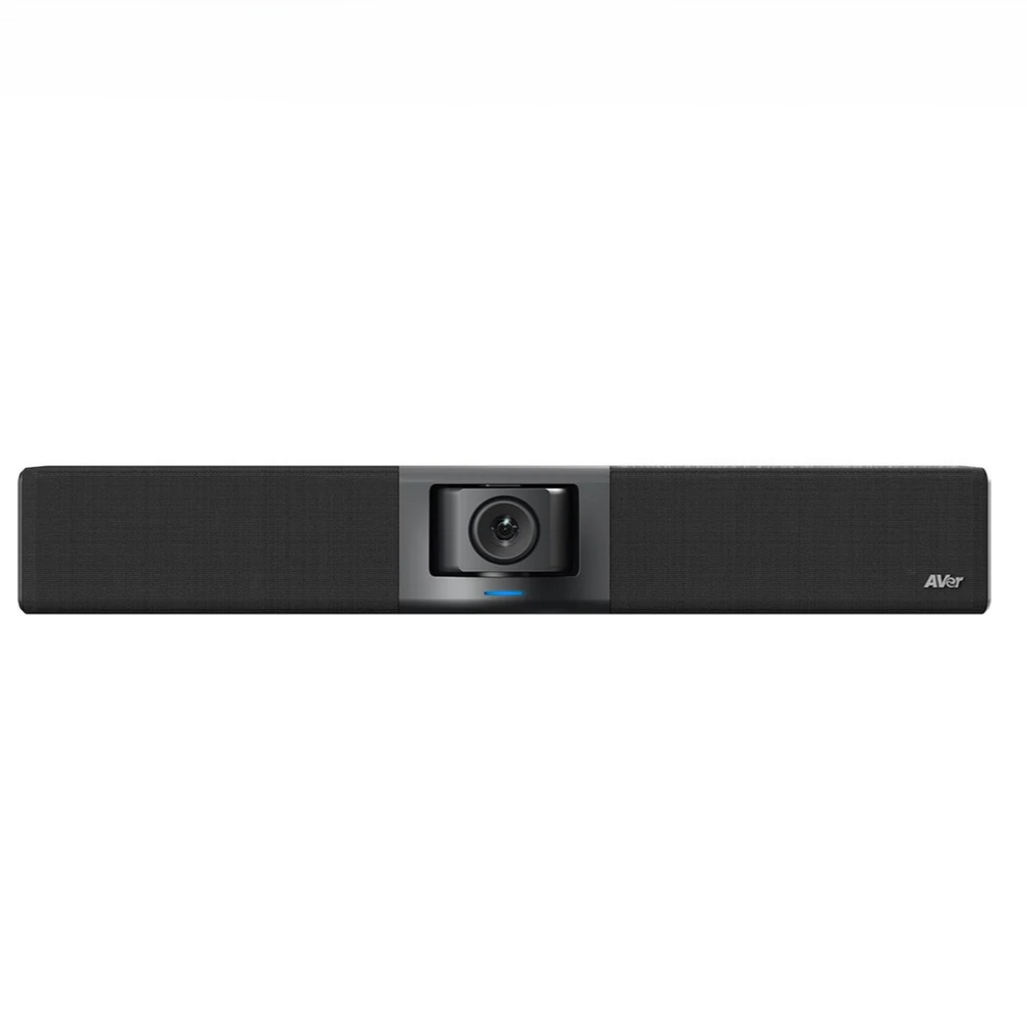

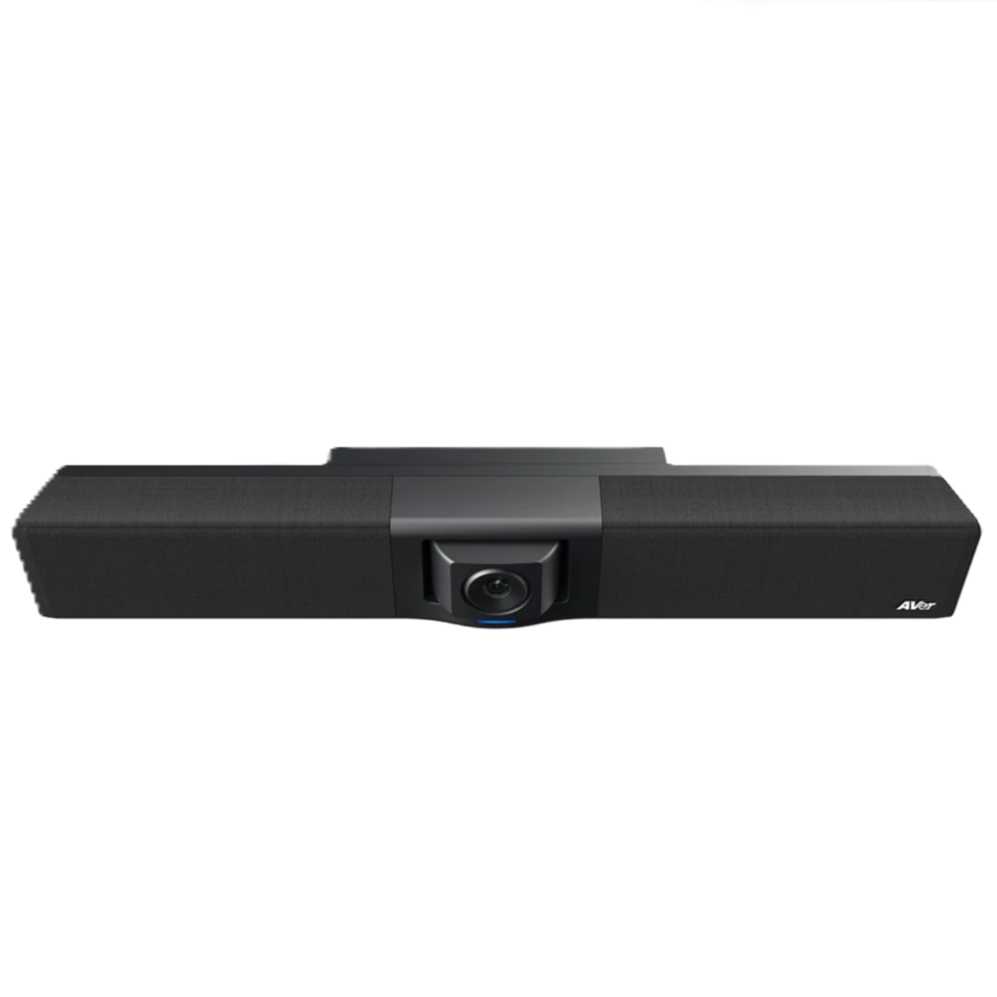

Aver VB342 Pro 4K PTZ Video Bar

Camera

• 4K 3X optical zoom lens with 15X zoom
• Field of view (D/H/V): 92°/84°/53°
• Sony 4K True WDR sensor: ultra-crystal-clear image in any lighting
• Frame rate: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360 at 60, 30, 15fps
• Adjustable audio fence: Block outside noise; freely define your meeting area
• True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• SmartFrame & SmartSpeaker: automatic tracking and field of view adjustment to fit all participants and focus on the speaker
• Presentation tracking: Tracking speaker with both preset area and participant tracking
• Smart gallery* function for great visibility
• Gesture control for intuitive camera control
• Mirror, Flip, AE, white balance: Auto, manual override via Room Management (PTZApp 2)
• Minimum focus distance: 80 cm
• People counting API: Enterprises and third-party software providers can obtain people-counting data and meeting interval for better understanding of meeting space usage

Motorized Pan and Tilt Movement

• Pan: total horizontal viewing area 180°
• Tilt: total vertical viewing area 105°
• 10 camera presets (via remote control and IP web page)

Video Format

• YUV, YUY2, M-JPEG
• Network video compression formats: H.264, H.265

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB Video); UAC 1.0 (USB Audio)

Control

• IR remote control
• WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
• VISCA/pelco P/pelco D via RS-232; Visca over IP
• UVC/UVA plug-and-play
• Room Management (PTZApp 2)

Mount and Security

• Camera wall-mount bracket included
• TV VESA mount kit (optional)
• Foldable TV mount (optional)
• Kensington security lock

System Requirement

Software

		<ul>
			<li>Windows&reg; 7/10/11</li>
			<li>Mac OS X 10.14 or later</li>
			<li>Chromebox 3 version 94.0.4606.114 or later</li>
		</ul>

		<p><strong>Hardware</strong></p>

		<ul>
			<li>3.2 GHz Intel&reg; Core&trade; i5-4460 processor</li>
			<li>4 GB RAM or more</li>
			<li>USB 3.1 port, backward compatible with USB 2.0</li>
		</ul>
		</td>
	</tr>
	<tr>
		<td style="vertical-align:top; width:118.25pt">
		<p>Power Supply</p>
		</td>
		<td style="vertical-align:top; width:321.45pt">
		<ul>
			<li>AC 100V&ndash;240V, 50/60 Hz</li>
			<li>Consumption: 12V/5A</li>
		</ul>
		</td>
	</tr>
	<tr>
		<td style="vertical-align:top; width:118.25pt">
		<p>Software Tools</p>
		</td>
		<td style="vertical-align:top; width:321.45pt">
		<ul>
			<li><strong>Room Management (PTZApp 2) : </strong>Supports Windows&reg; 7 or later, macOS&reg; 11.6 or later</li>
			<li><strong>Enterprise Management (PTZ Management) : </strong>Supports Windows&reg; 10 or later</li>
			<li><strong>EZManager 2 : </strong>Supports Windows&reg; 7 or later</li>
			<li><strong>EZLive : </strong>Supports Windows&reg; 7 or later, macOS&reg; 10.13 or later</li>
		</ul>
		</td>
	</tr>
	<tr>
		<td style="height:81.7pt; vertical-align:top; width:118.25pt">
		<p>Audio</p>
		</td>
		<td style="height:81.7pt; vertical-align:top; width:321.45pt">
		<ul>
			<li>10-element beamforming microphone array</li>
			<li>8 meters (27 ft) pickup range</li>
			<li>Stereo speaker with output power 12W (6W x 2 pcs)</li>
			<li>Volume up to 96 dB SPL at 1/2 m</li>
			<li>Echo cancellation</li>
			<li>Noise suppression</li>
		</ul>
		</td>
	</tr>
	<tr>
		<td style="vertical-align:top; width:118.25pt">
		<p>HDMI</p>
		</td>
		<td style="vertical-align:top; width:321.45pt">
		<ul>
			<li>USB Display Adapter: built-in USB 3.1 (Gen 1) to HDMI adapter</li>
		</ul>
		</td>
	</tr>
	<tr>
		<td style="vertical-align:top; width:118.25pt">
		<p>Connectivity</p>
		</td>
		<td style="vertical-align:top; width:321.45pt">
		<ul>
			<li>12V/5A power adaptor</li>
			<li>Mini DIN 6 for RS-232 connection</li>
			<li>USB 3.1 Type-B port, backward compatible with USB 2.0</li>
			<li>HDMI out connection (USB Display Adapter)</li>
			<li>Phone in (1Vrms input)/Speaker out for HA system*</li>
			<li>Two RJ45 ports (one for Ethernet, one for audio expansion speakerphone/ microphone)</li>
			<li>USB 2.0 Type-A*2 : One for Wireless connection**; one for IFP USB Touch back</li>
		</ul>
		</td>
	</tr>
	<tr>
		<td style="vertical-align:top; width:118.25pt">
		<p>Environmental Data</p>
		</td>
		<td style="vertical-align:top; width:321.45pt">
		<ul>
			<li>Operation temperature: 0&deg;C ~ 40&deg;C</li>
			<li>Operation humidity: 20% ~ 80%</li>
			<li>Storage temperature: -20&deg;C ~ 60&deg;C</li>
			<li>Storage humidity: 20% ~ 80%</li>
		</ul>
		</td>
	</tr>
	<tr>
		<td style="vertical-align:top; width:118.25pt">
		<p>Dimensions</p>
		</td>
		<td style="vertical-align:top; width:321.45pt">
		<ul>
			<li>Package dimensions: 872 x 197 x 260 mm</li>
			<li>Package weight: 6.3 kg / 13.8 lbs</li>
			<li>Camera: 738 x 127 x 116 mm / 3.1 kg</li>
			<li>Remote control: 149.72 x 42.3 x 19.3mm / 50 g</li>
		</ul>
		</td>
	</tr>
	<tr>
		<td style="vertical-align:top; width:118.25pt">
		<p>Compatible Applications</p>
		</td>
		<td style="vertical-align:top; width:321.45pt">
		<ul>
			<li>Zoom, Microsoft&reg; Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel&reg; Unite&trade;, Fuze, Adobe&reg; Connect&trade;, CyberLink U Meeting&reg;, Cisco WebEx&reg; GoToMeeting&trade;, LiveOn, Microsoft&reg; Lync&trade;, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit</li>
		</ul>
		</td>
	</tr>
</tbody>
