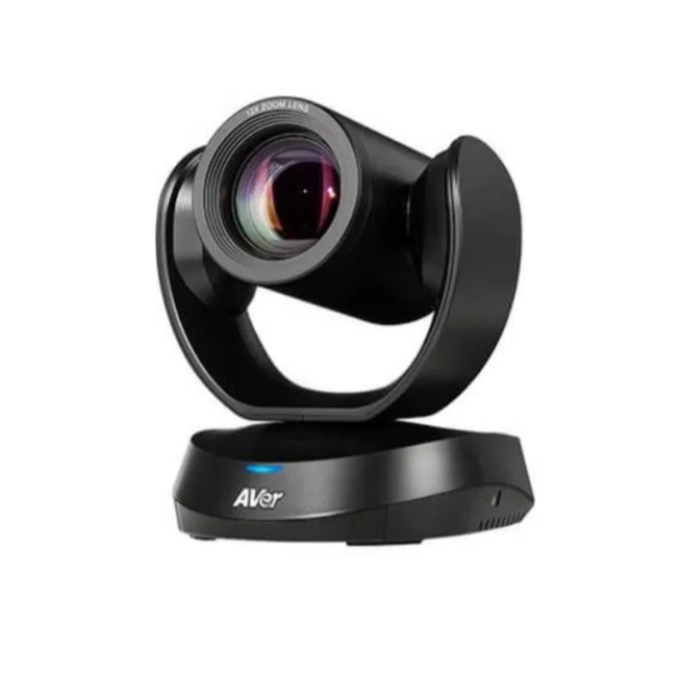

Aver VC520 Pro2 Full HD USB Conference camera

Camera

• Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
• Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
• SmartFrame for automatic FOV adjustment to fit all participants
• Smart Gallery* function offers great visibility for individual participant in the meeting room
• Innovative Preset Framing: Follow presenter based on preset areas
• True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Zoom: 24X* total zoom (12X optical zoom)
• Field of view(D/H/V): 84.5°/76°/48°
• Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2
• Minimum focus distance: 1.5 m
• Standard tripod screw holes and Kensington slot
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

Motorized Pan and Tilt Movement

• Pan: ±170°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (via remote control)
• Fast and quiet pan & tilt movement

Video Format

• YUV, YUY2, MJPEG, NV12
• Network video compression format: H.264
• Network protocols: RTSP, RTMP

Speakerphone

• Full duplex microphone array with echo cancellation
• Advanced noise suppression
• Dual-omnidirectional microphone array
• 3.5 mm phone-in jack
• 3.5 mm line out
• Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
• Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button*
• Bridge phone-in and USB into one call
• Security: Kensington slot

Audio Format

• AAC-LC
• Network protocol: RTSP, RTMP

Connectivity

• 12V/5A power adaptor
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
• USB 3.1 Type-B connector
• IP (RJ45)

Environmental Data

• Operation temperature: 0°C ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 20% ~ 80%

Dimensions

• Package dimensions: 259 x 259 x 349 mm*
• Package weight: 5.4 kg*
• Camera: 142.7 x 153 x 182 mm/1.45 kg
• Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
• Remote control: 200 x 50 x 21 mm/0.09 kg

USB

• UVC 1.5 requires an additional firmware upgrade. Please contact technical support for more details.
• 3.1 Gen 1 Type-B, backward compatible with USB 2.0
• UVC (USB video class) 1.1
• UAC (USB audio class) 1.0
• UVC1.5*

Control

• IR remote control
• VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC/UAC plug-and-play
• WebUI: Browser IP access via Chrome (does not support Internet Explorer)
• PTZApp 2

Mount

• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

System Requirements

• Windows® 7/10/11
• Mac OS X 10.14 or higher
• Chromebox 3 version 94.0.4606.114 or later

Hardware Specs

• 3.2 GHz Intel® Core™ i5-4460 Processor or higher
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0 port

Web page browser requirement

• Chrome: version 76.x or above
• Firefox: version 69 or above
• IE: Not support

Power Supply

• AC 100V ~ 240V, 50/60 Hz
• Consumption: 12V, 5A

Compatible Applications

• Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
