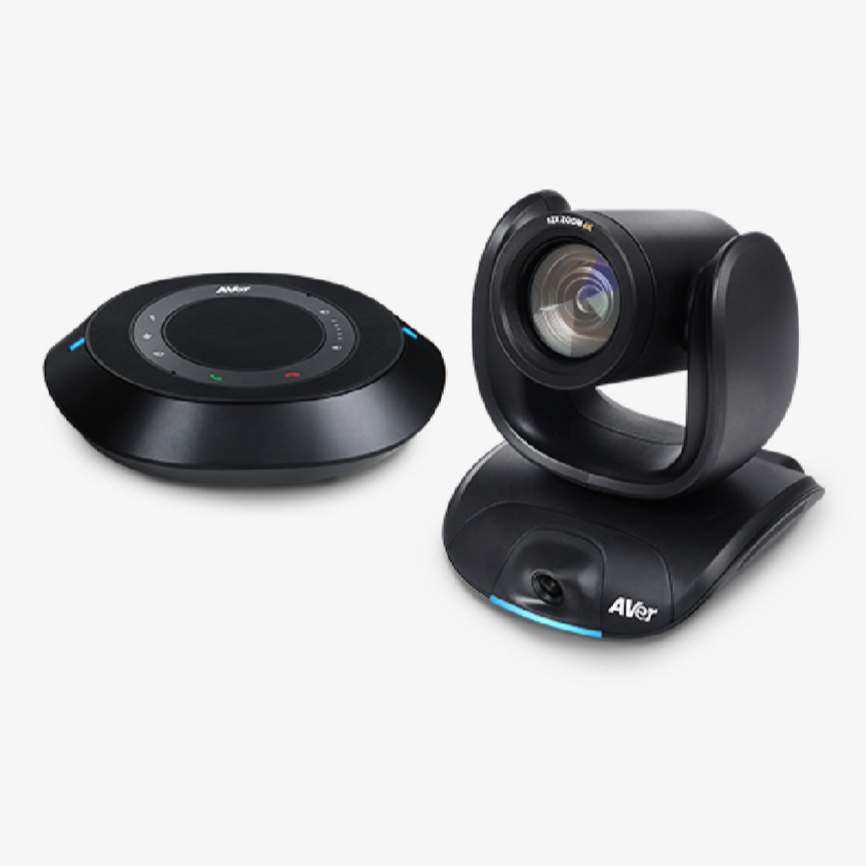

Dual Lens Camera (CAM550)
|
PTZ optical zoom lens
<ul>
<li>Image sensor: Sony 4K EXMOR, crystal clear in any lighting</li>
<li>Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps</li>
<li>24*X Zoom: 12X optical; 2X digital zoom</li>
<li>Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°</li>
<li>Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)</li>
<li>Lens F#: 1.8 (wide) ~ 2.8 (tele)</li>
<li>AE, white balance: auto, manual override via PTZApp 2</li>
<li>Minimum focus distance: 1.5m</li>
<li>Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)</li>
<li>Preset number: 10 via IR remote, 128 via RS232</li>
</ul>
<p><strong>Secondary fixed lens (AI lens)</strong></p>
<ul>
<li>Image sensor: Sony 4K EXMOR</li>
<li>Frame rates and resolution set according to PTZ lens settings</li>
<li>Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°</li>
</ul>
</td>
</tr>
<tr>
<td style="width:118.25pt">
<p>Speakerphone</p>
</td>
<td style="width:321.45pt">
<ul>
<li>Wireless Bluetooth / USB Wired for PC</li>
<li>Full duplex microphone array speakerphone</li>
<li>Two omnidirectional microphones support 360° pickup</li>
<li>Full duplex echo cancellation</li>
<li>Advanced noise suppression</li>
<li>Powerful wideband voice processing</li>
<li>Speaker volume: adjustable to 90 dB SPL at 0.5 m</li>
<li>3.5 mm line-in (aux) cable connects BYOD smartphones or PCs to use as speakerphones</li>
<li>Touch controls for volume adjustment, mute, phone input, call, and hang up</li>
<li>Can bridge phone-in and USB into one call</li>
<li>Kensington lock</li>
</ul>
</td>
</tr>
<tr>
<td style="width:118.25pt">
<p>HDMI & PoE</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<ul>
<li>HDMI 1.3: 1080p 30fps/ 60fps</li>
<li>PoE+: 802.3at</li>
</ul>
</td>
</tr>
<tr>
<td style="width:118.25pt">
<p>Video Format</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<ul>
<li>YUV, YUY2, MJPEG</li>
<li>Network video compression format: H.264, H.265</li>
<li>Network protocol: RTSP, RTMP</li>
</ul>
</td>
</tr>
<tr>
<td style="height:9.25pt; width:118.25pt">
<p>USB</p>
</td>
<td style="height:9.25pt; vertical-align:top; width:321.45pt">
<ul>
<li>3.1 Gen 1, backward compatible with USB 2.0</li>
<li>UVC 1.1 (USB video), UVC1.5*</li>
</ul>
</td>
</tr>
<tr>
<td style="vertical-align:top; width:118.25pt">
<p>Control</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<p><strong>Camera</strong></p>
<ul>
<li>IR remote control</li>
<li>VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)</li>
<li> Remote side: VISCA over IP, IP (RJ45)</li>
<li>UVC plug and play</li>
<li>WebUI: Browser IP access via Chrome (Not support IE)</li>
<li>OSD setting: HDMI out to TV monitor</li>
<li>PTZApp 2 Support</li>
</ul>
<p><strong>Speakerphone</strong></p>
<ul>
<li>UAC, plug and play</li>
<li>WebUI: Browser IP access via Chrome (Not support IE)</li>
<li>PTZApp 2 Support</li>
</ul>
</td>
</tr>
<tr>
<td style="vertical-align:top; width:118.25pt">
<p>Power Supply</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<p><strong> Camera</strong></p>
<ul>
<li>AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A</li>
<li>PoE+: 802.3at</li>
</ul>
<p><strong>Speakerphone</strong></p>
<ul>
<li>AC 100V to 240V, 50/60 Hz</li>
<li>Consumption: 12V, 5A</li>
</ul>
</td>
</tr>
<tr>
<td style="vertical-align:top; width:118.25pt">
<p>Dimensions</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<ul>
<li>Package dimensions: 348(L)*251(W)*308(H) mm</li>
<li>Package weight: 7.9kg</li>
<li>Camera: 170.8(L) x 190.5 (H) x 173(D) mm/ 2.1kg</li>
<li>Speakerphone: 220(L)x 49.5(D) x 181.5(H) mm/ 0.8kg</li>
<li>Remote control: 200 x 50 x 21 mm/ 90g</li>
</ul>
</td>
</tr>
<tr>
<td style="vertical-align:top; width:118.25pt">
<p>Connectivity</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<p><strong>Camera</strong></p>
<ul>
<li>USB type-B 3.1 connector, backward compatible with USB 2.0</li>
<li>12V/2A DC jack power adapter</li>
<li>Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)</li>
<li>IP (RJ45)</li>
<li>HDMI</li>
</ul>
<p><strong>Speakerphone</strong></p>
<ul>
<li>USB2.0 Micro USB connector</li>
<li>12V/5A DC jack power adapter</li>
<li>LAN for IP remote access</li>
<li>Expansion port (daisy-chain speakerphone or microphone)</li>
<li>3.5 mm phone-in jack</li>
<li>3.5 mm line out</li>
</ul>
</td>
</tr>
<tr>
<td style="height:85.15pt; vertical-align:top; width:118.25pt">
<p>Software Tools</p>
</td>
<td style="height:85.15pt; vertical-align:top; width:321.45pt">
<ul>
<li>Kensington lock</li>
<li>1/4'tripod mounting screw</li>
<li>Camera wall-mount bracket included</li>
<li>Optional foldable TV mount</li>
</ul>
</td>
</tr>
<tr>
<td style="vertical-align:top; width:118.25pt">
<p>System Requirements</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<ul>
<li>Windows® 7/10/11</li>
<li>MacOS X 10.14 or later</li>
<li>Chromebox 3 version 94.0.4606.114 or later</li>
</ul>
</td>
</tr>
<tr>
<td style="vertical-align:top; width:118.25pt">
<p>Hardware Specs</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<ul>
<li>3.2 GHz Intel® Core™ i5-4460 processor</li>
<li>4 GB RAM or more</li>
<li>USB 3.1 port, backward compatible with USB 2.0</li>
</ul>
</td>
</tr>
<tr>
<td style="vertical-align:top; width:118.25pt">
<p>Compatible Applications</p>
</td>
<td style="vertical-align:top; width:321.45pt">
<ul>
<li>Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit</li>
</ul>
</td>
</tr>
</tbody>
|
