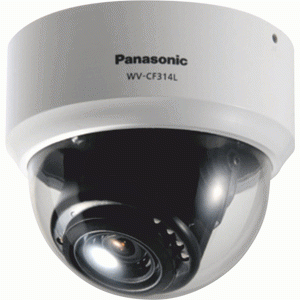

CCTV Panasonic iPro Analog WV-CF314LE IR Indoor Dome IP Security Camera

High resolution: 650 TV lines | High sensitivity with Day/Night(Electrical) function: 0.08 lx (Color), 0 lx (B/W LED on) at F1.3. IR cut filter switches on/off to enhance the sensitivity in B/W mode. | IR LED equipped : The equipped infrared LED makes it possible to take pictures at 0 (zero) lx. IR LED irradiation distance 20 m | LED AUTO mode : Control to the best brightness level automatically when the IR LED is ON | ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area | ABF (Auto Back Focus) ensures easy installation

Harga

Rp 11.132.000

Minta Penawaran via WhatsApp

Respon cepat · Harga negosiasi · Garansi resmi

Deskripsi Produk



		<p>&nbsp;</p>

		<p>Camera&nbsp;</p>
		</td>
		<td>Image Sensor&nbsp;</td>
		<td>1/3 type interline transfer CCD&nbsp;</td>
	</tr>
	<tr>
		<td>Effective Pixels&nbsp;</td>
		<td>976 (H) x 582 (V)&nbsp;</td>
	</tr>
	<tr>
		<td>Scanning Mode&nbsp;</td>
		<td>2:1 interlace</td>
	</tr>
	<tr>
		<td>Scanning Area&nbsp;</td>
		<td>4.8 mm (H) x 3.6 mm (V) {3/16 inches(H) x 1/8 inches(V) }</td>
	</tr>
	<tr>
		<td>Scanning Frequency&nbsp;</td>
		<td>Horizontal: 15.625 kHz Vertical: 50.00 Hz</td>
	</tr>
	<tr>
		<td>Horizontal Resolution&nbsp;</td>
		<td>650 TV lines (typ.)</td>
	</tr>
	<tr>
		<td>Minimum Illumination&nbsp;</td>
		<td>Color :<br />
		0.08 lx(color mode)<br />
		B/W: 0.008 lx (black-and-white mode, LED OFF)<br />
		B/W: 0 lx (black-and-white mode, LED ON</td>
	</tr>
	<tr>
		<td>Signal-to-Noise Ratio&nbsp;</td>
		<td>52 dB (AGC: OFF</td>
	</tr>
	<tr>
		<td>White Balance&nbsp;</td>
		<td>AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K</td>
	</tr>
	<tr>
		<td>Light Control&nbsp;</td>
		<td>ALC/ALC+/ELC</td>
	</tr>
	<tr>
		<td>BLC</td>
		<td>ON / OFF</td>
	</tr>
	<tr>
		<td>ABS</td>
		<td>ON / OFF</td>
	</tr>
	<tr>
		<td>AGC&nbsp;</td>
		<td>ON (LOW, MID, HIGH) / OFF</td>
	</tr>
	<tr>
		<td>Electronic Shutter</td>
		<td>-</td>
	</tr>
	<tr>
		<td>Electronic Sensitivity UP</td>
		<td>32x max. AUTO, 512x max. FIX</td>
	</tr>
	<tr>
		<td>Day Night (IR)&nbsp;</td>
		<td>AUTO1 / AUTO2 / ON / OFF</td>
	</tr>
	<tr>
		<td>LED</td>
		<td>OFF / AUTO / FIX (available for D&amp;N AUTO2 mode or D&amp;N ON mode</td>
	</tr>
	<tr>
		<td>Digital Noise Reduction&nbsp;</td>
		<td>high or low</td>
	</tr>
	<tr>
		<td>Scene File</td>
		<td>2 patterns</td>
	</tr>
	<tr>
		<td>Video Motion Detection</td>
		<td>OFF / MOTION DET / SCENE CHANGE</td>
	</tr>
	<tr>
		<td>Privacy Zone</td>
		<td>ON(1) / ON(2) / OFF</td>
	</tr>
	<tr>
		<td>Image Stabilizer</td>
		<td>ON / OFF</td>
	</tr>
	<tr>
		<td>Auto Focus</td>
		<td>Lens AF / MANUAL</td>
	</tr>
	<tr>
		<td>IR LED irradiation distance</td>
		<td>20 m</td>
	</tr>
	<tr>
		<td>Synchronization&nbsp;</td>
		<td>Internal (INT)&nbsp;</td>
	</tr>
	<tr>
		<td rowspan="5">
		<p>&nbsp;</p>

		<p>&nbsp;</p>

		<p>Lens&nbsp;</p>
		</td>
		<td>Focal Length &nbsp;</td>
		<td>2.8 mm ~ 10.0 mm</td>
	</tr>
	<tr>
		<td>Zoom Ration</td>
		<td>3.6x</td>
	</tr>
	<tr>
		<td>Angular Field of View&nbsp;</td>
		<td>H: 100&deg; 50&#39; (Wide) ~ 27&deg; 39&#39;(Tele)<br />
		V: 73&deg; 51&#39; (Wide) ~ 20&deg; 45&#39; (Tele)</td>
	</tr>
	<tr>
		<td>Maximum Aperture Ratio</td>
		<td>F1.3 (Wide) ~ F3.1 (Tele</td>
	</tr>
	<tr>
		<td>Focusing Range</td>
		<td>0.3 m ~ &infin;</td>
	</tr>
	<tr>
		<td rowspan="2">
		<p>&nbsp;</p>

		<p>Input / Output&nbsp;</p>
		</td>
		<td>Video Output&nbsp;</td>
		<td>1.0 V [p-p] / PAL composite 75 </td>
	</tr>
	<tr>
		<td>Controller Interface</td>
		<td>Coaxial Multiplex System</td>
	</tr>
	<tr>
		<td rowspan="8">
		<p>&nbsp;</p>

		<p>&nbsp;</p>

		<p>&nbsp;</p>

		<p>&nbsp;</p>

		<p>General&nbsp;</p>
		</td>
		<td>Setup Method</td>
		<td>OSD setup menu</td>
	</tr>
	<tr>
		<td>Language</td>
		<td>English, French, Italian, Spanish, German, Russian, Chinese, Japanese</td>
	</tr>
	<tr>
		<td>Power Source and Power Consumption</td>
		<td>24 V AC: 3.6 W, 12 V DC: 410 mA (LED ON)</td>
	</tr>
	<tr>
		<td>Ambient Operating Temperature</td>
		<td>&ndash;10 &deg;C ~ +50 &deg;C (14 &deg;F ~ 122 &deg;F)</td>
	</tr>
	<tr>
		<td>Ambient Operating Humidity</td>
		<td>90 % or less (without condensation)</td>
	</tr>
	<tr>
		<td>Dimensions</td>
		<td>&oslash;123 mm x 106 mm (&oslash;4-27/32 inches x 4-3/16 inches)</td>
	</tr>
	<tr>
		<td>Mass (approx.)</td>
		<td>390 g (0.86 lbs.)</td>
	</tr>
	<tr>
		<td>Finish</td>
		<td>White (N5040-b1)</td>
	</tr>
</tbody>
