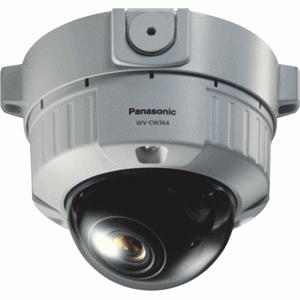

CCTV Panasonic iPro Analog WV-CW364SE IR Outdoor Dome IP Security Camera
High resolution: 540 TV lines | High sensitivity with True Day/Night function (WV-CW364) : 0.6 lx (Colour) : 0.05 lx (B/W) | ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area. | Vandal resistant mechanism for high reliability | IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.
Deskripsi Produk
| Camera | Image Sensor | 1/3 type interline transfer CCD |
| Effective Pixels | 752 (H) x 582 (V) | |
| Scanning Mode | 2:1 interlace scan | |
| Scanning Area | 4.9 mm (H) x 3.7 mm (V) | |
| Scanning Frequency | Horizontal: 15.625 kHz Vertical: 50 Hz | |
| Scanning Line | 625 lines | |
| Horizontal Resolution | 540 TV lines (at centre) | |
| Minimum Illumination | WV-CW364S: Colour: 0.6 lx, B/W: 0.05 lx, F1.3 Wide WV-CW334SE: Colour: 0.6 lx, B/W: 0.4 lx, F1.3 Wide | |
| Signal-to-Noise Ratio | 50 dB (equivalent to AGC Off, Weight on) | |
| White Balance | ATW / AWC | |
| Back Light Compensation | ON / OFF | |
| Adaptive Black Stretch | ON / OFF | |
| Black and White Mode | WV-CW364S: ON (AUTO) / OFF (IR filter moving) WV-CW334SE: ON (AUTO) / OFF (No IR filter moving) | |
| Focus Adjustment | Manual | |
| Synchronization | Internal (INT), Multiplexed Vertical Drive (VD2) | |
| Lens | Focal Length | 2.8 mm ~ 10.0 mm, 3.6x varifocal |
| Angular Field of View | WV-CW364S: H: 100.5° (Wide) ~ 27.39° (Tele) V: 73.51° (Wide) ~ 20.45° (Tele) WV-CW334SE: H: 100.18° (Wide) ~ 27.39° (Tele) V: 73.33° (Wide) ~ 20.45° (Tele) | |
| Maximum Aperture Ratio | 1:1.3 (Wide) ~ 1:3.1 (Tele) | |
| Focusing Range | 1.2 m (3.9 ft.) ~ ∞ | |
| Pan and Tilt | Panning range | +180° ~ –140° |
| Tilting Range | ±75° | |
| Input/ Output | Video Output | 1.0 V [p-p] / 75 Ω, PAL composite, BNC connector |
| Monitor Output | 1.0 V [p-p] / 75 Ω / PAL composite signal / ø3.5 mm RCA jack | |
| General | Safty/EMC Standard | CE (EN60065, EN55022 ClassB, EN55024), GOST (R 51558) |
| Power Source and Power Consumption | 24 V AC 50 Hz, 2.9 W, 13.1 W *1 12 V DC, 250 mA *2 | |
| Ambient Operating Temperature | –10 °C ~ +50 °C (14°F to 122°F) –30 °C ~ +50 °C (-22°F to 122°F) *1 | |
| Ambient Operating Humidity | 90 % or less (without condensation) | |
| Water and Dust Resistance | IP66, IEC60529 measuring standard compatible *Applicable only when the installation and waterproof process are done properly. | |
| Impact Protection | IEC 60068-2-75 test Eh, 50J | |
| Dimensions | ø164 mm x 146 mm (H), 191.5 mm (Base Cover) (ø6-7/16" x 5-3/4" (H) x 7-9/16" (W))(Base Cover) | |
| Mass (approx.) | Main Body: 1.05 kg (2.31 Ibs), including camera attachment 100 g (0.22 Ibs), Mounting Base: 350 g (0.78 Ibs), Ceiling Mount Bracket: 700 g (1.55 Ibs) | |
| Note | *1 With optional Heater Unit WV-CW5H *2 Optional Heater Unit WV-CW5H cannot be used under 12 V DC operation. | |
