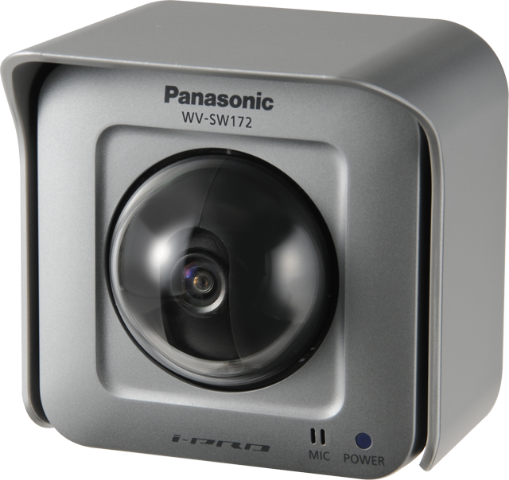

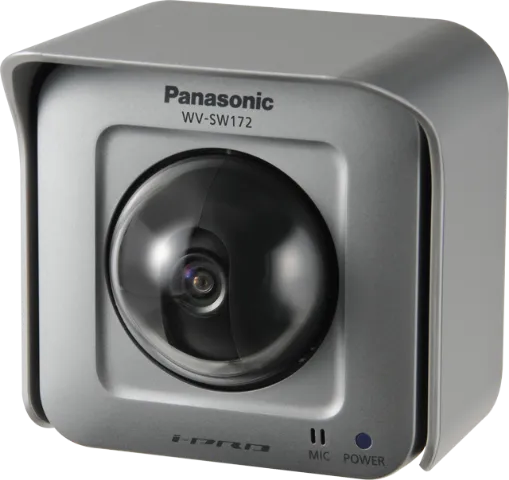

CCTV Panasonic iPro Dome Camera Outdoor 1.3MP WV-SW172 Wide View
1.3 Megapixel high sensitivity MOS Sensor | Full frame (Up to 30 fps) transmission at SVGA (800 x 600) image size | Panning/tilting and Preset Map Shot function realizes wide range monitoring. | Face Wide Dynamic Range | High sensitivity with Day & Night (electrical) function: 0.6 lx (Color), 0.5 lx(B/W) at F2.2 | H.264 (High profile) dual stream and JPEG output | Power over Ethernet (PoE) IEEE 802.3af | IP55 rated
Deskripsi Produk
|
Indoor / Outdoor |
Outdoor |
|
|---|---|---|
|
Image sensor |
1/4 MOS |
|
|
Min. Illumination Color (lx) |
0.6 |
|
|
Min. Illumination B/W (lx) |
0.5 |
|
|
Maximum Resolution |
SVGA |
|
|
Maximum FPS |
30 |
|
|
Super Dynamic |
- |
|
|
Image compensation |
Adaptive Black Stretch, Digital noise reduction |
|
|
Color/BW |
Electrical |
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist |
- |
|
|
IR LED |
- |
|
|
Image Stabilizer |
- |
|
|
Corridor Mode |
- |
|
|
Privacy Zone |
2 |
|
|
iA (Intelligent Auto) |
- |
|
|
Intelligent VMD (i-VMD) |
Type1 |
|
|
Focal length |
f=1.95mm, F2.2 |
|
|
Zoom ratio |
- |
|
|
Angular field of view (16:9) |
H: 85 deg. V: 53 deg. |
|
|
Angular field of view (4:3) |
H: 85 deg. V: 68 deg. |
|
|
Panning Range |
-47.5 - +47.5 deg. |
|
|
Tilting Range |
-45 - +10 deg. |
|
|
Network IF |
10Base-T, 100Base-TX, RJ45 connector |
|
|
Video Codec |
H.264, JPEG |
|
|
Transmission mode (H.265/H.264) |
Constant bit rate, Advanced variable bit rate, Frame rate, Best effort |
|
|
Smart Coding |
- |
|
|
Audio Support |
Yes |
|
|
Built-in microphone |
Yes |
|
|
Microphone/Line Input |
Yes |
|
|
Audio Output |
Yes |
|
|
SD memory Card Slot |
SDXC |
|
|
External I/O Terminals |
Yes |
|
|
Ambient Operating Humidity |
Less than 90 |
|
|
Vandal Resistant |
- |
|
|
Water and Dust Resistance |
IP55, NEMA 3R |
|
|
ClearSight Coating / Rain Wash Coating |
- |
|
|
Dehumidification device |
- |
|
