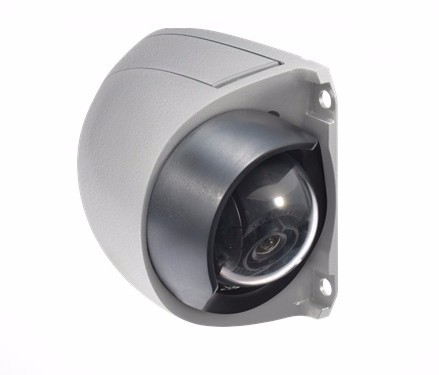

CCTV Panasonic iPro WV-SBV111M 1MP H.264 Outdoor Bullet IP Security Camera
720p HD images up to 30 fps | Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range compared with conventional cameras. | High sensitivity with Day/Night (Electrical) function: 0.04 lx (Color), 0.03 lx (B/W) at F2.2 | VIQS (Variable Image Quality on Specified area) technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate. | Digital Noise Reduction: 3D-MNR (Multi process Noise Reduction) ensures noise reduction in various conditions and achieves a low bit rate under low illumination. | FDF (Frequency Divided Filter): Removing fine noise generated under low illumination to achieve a low bit rate. | SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG) | Fog compensation function equipped as standard. | HLC (High Light Compensation) technology reduces strong light sources such as vehicle headlights to prevent camera being blinded. | Internet mode: H.264 images can be transmitted over HTTP protocol.
Deskripsi Produk
|
Indoor / Outdoor |
Outdoor |
|
|---|---|---|
|
Image sensor |
1/3 MOS |
|
|
Min. Illumination Color (lx) |
0.04 |
|
|
Min. Illumination B/W (lx) |
0.03 |
|
|
Maximum Resolution |
HD (720p / 1,280x 960) |
|
|
Maximum FPS |
30 |
|
|
Super Dynamic |
- |
|
|
Image compensation |
Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
|
|
Color/BW |
Electrical |
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist |
- |
|
|
IR LED |
- |
|
|
Image Stabilizer |
- |
|
|
Corridor Mode |
- |
|
|
Privacy Zone |
8 |
|
|
iA (Intelligent Auto) |
- |
|
|
Intelligent VMD (i-VMD) |
- |
|
|
Focal length |
f=1.95mm, {1/16 inches}, F2.2 |
|
|
Zoom ratio |
- |
|
|
Angular field of view (16:9) |
H: 104 deg. V: 69 deg. |
|
|
Angular field of view (4:3) |
H: 104 deg. V: 85 deg. |
|
|
Panning Range |
-170 - +170 deg. |
|
|
Tilting Range |
-90 - +90 deg. |
|
|
Network IF |
10Base-T, 100Base-TX, M12 connector |
|
|
Video Codec |
H.264, JPEG |
|
|
Transmission mode (H.265/H.264) |
Constant bit rate, Variable bit rate, Advanced variable bit rate, Frame rate, Best effort |
|
|
Smart Coding |
- |
|
|
Audio Support |
- |
|
|
Built-in microphone |
- |
|
|
Microphone/Line Input |
- |
|
|
Audio Output |
- |
|
|
SD memory Card Slot |
SDXC |
|
|
External I/O Terminals |
- |
|
|
Ambient Operating Humidity |
10-90 |
|
|
Vandal Resistant |
IK10 (IEC62262) |
|
|
Water and Dust Resistance |
IP6K9K, IP66 (IEC60529), Type 4X(UL50), NEMA 4X |
|
|
ClearSight Coating / Rain Wash Coating |
- |
|
|
Dehumidification device |
- |
|
|
Temperature (degree, Celsius) |
MAX |
60 |
| MIN |
-40 |
|
|
Temperature (degree, Fahrenheit) |
MAX |
140 |
| MIN |
-40 |
|
|
Power Source |
PoE |
|
|
SSL device certificate |
- |
|
|
ONVIF Profile |
S, G |
|
