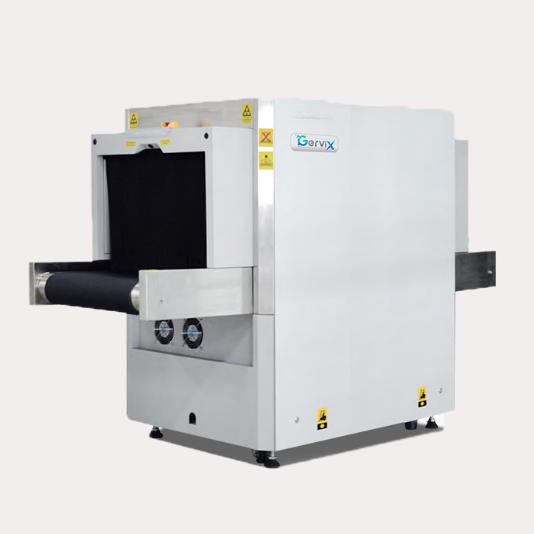

Gervix High Security X-ray Luggage Scanner GV-V6040
Heavy Duty X-Ray Module by IMS Röntgensysteme GmbH, Germany | High Sensitivity Sensor by Sensorix, Germany | High Resolution Linear Array Detector by PTW, Germany | Sophisticated design with multifunctions operator interface | Can increase the conveyor speed to 0.3m/s ( Customized ) | Collection the highspeed parallel of detection data | With network interface to achieve total network management
Deskripsi Produk
- Tunnel Size : 624 mm x 425 mm ( WxH )
- ConveyorSpeed : 0.2 m/s
- Conveyor Heigh : 678 mm
- Max. Load : 160Kg ( Evenly distributed )
- Resolution : Typical: AWG 34 mmStandard: AWG 38
- Penetration(Steel) : Typical : 34 mm Standard : 30 mm
- Spatial Resolution : Horizontal: ?1.0 mm Vertical:?1.0 mm
- Image Resolution : 19” LED ( Single Display )
- Display : Black/White, Color
- Saves Capacity & Pull Back : 100.000 images / infinite review
- Image Processing Resolution : 1440 x 900
- Processing & Gray Scale : 24 Bit real-time processing
- 65536 Enlargement : Up64X dynamic continuous zoom & painting
- Anode Voltage : 160KV (Adjustable)
- Beam Direction : From Bottom
- Cooling & Running Cycle : Sealed oil cooling & 100%
- X-Ray Sensor : Multi-energy L photoelectric diode array detector
- IPC Configuration : Win7 ; Ram 2GB ; Hard Disk 500GB
- Leakage : <1μGy/h according to ISS
- Film Safety : According to the ISO1600(33DIN) High Speed Standard
- Warranty : Electrical 24 Months
