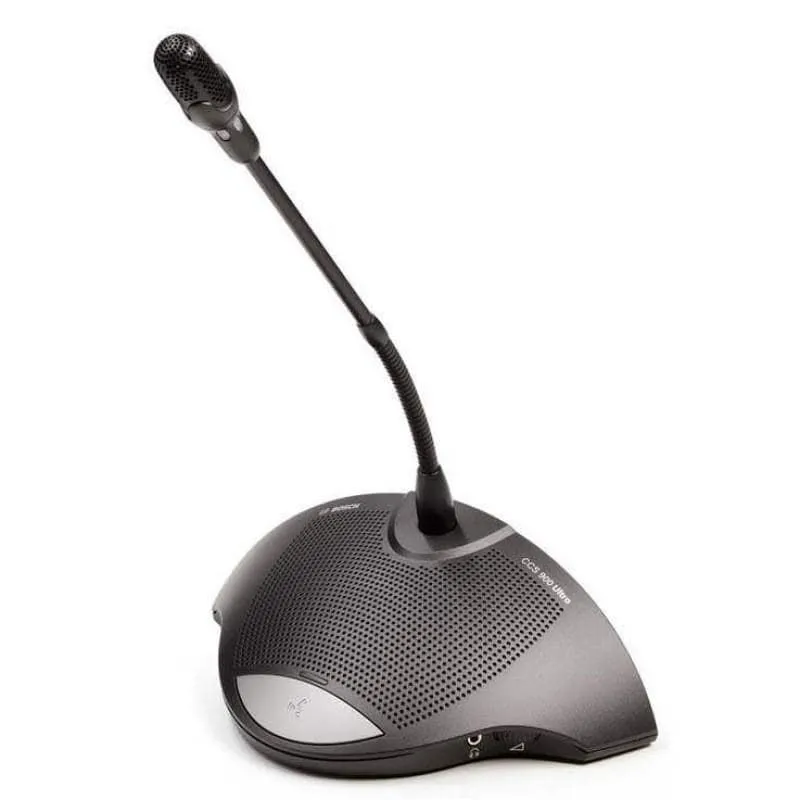

Microphone Conference Bosch CCS 900S Ultro Chairman Unit (CCS-CM-ID)

Controls and indicators

• Microphone with red illuminated indicator ring, lights when the microphone is ON.
• Two 3.5 mm stereo headphone sockets, one at each side, for headphone or recorder connection.
• Built-in loudspeaker, automatically muted when the microphone is ON.
• 7-pole circular female socket for loopthrough connection to the next unit.
• 2,5 m flying lead connection cable with sturdy moulded 7-pole circular male connector for connection to the previous unit or CU.
• Rotary volume control for headphones only
• Microphone ON/OFF push-button.

Interconnection

• 2,5 m (98.4 in) cable terminated in a moulded 7-pole circular connector for connection to delegate unit or CPSU
• 7-pole circular female socket for loop-through connection to delegate units
• Two 3.5 mm (0.14 in) stereo headphone sockets

Mounting	Table-top (portable or fixed mounting)
Dimensions (H x W X D)	71 x 220 x 140 mm (2.8 x 8.66 x 5.51 in) (without microphone). Height is 132 mm (5.2 in) with microphone in horizontal position
Length of microphone from mounting surface	390 mm (15.3 in)
Weight	1 kg (2.2 lb)
Colour (top and base)	charcoal (PH 10736)
