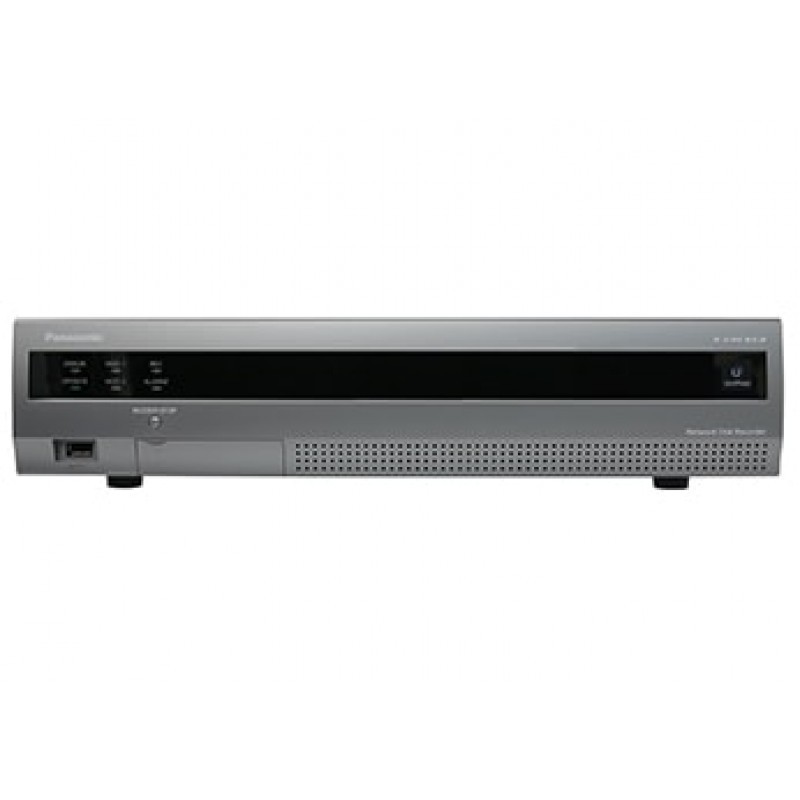

<p>Recording </p>
</td>
<td>Recording Mode</td>
<td>Event, Schedule </td>
</tr>
<tr>
<td>Pre-alarm Recording </td>
<td>Up to 15 seconds (Up to 10 seconds at 1,920 x 1080 resolution) </td>
</tr>
<tr>
<td>Scheduled Recording Mode </td>
<td>2 programs, 3 time zones/day, Independent setup for each day of the week </td>
</tr>
<tr>
<td>Frame Rate/Camera </td>
<td>Up to 30 ips (Depending on the Camera) </td>
</tr>
<tr>
<td rowspan="10">
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p>Main Unit Functions </p>
</td>
<td>Camera Control </td>
<td>Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus </td>
</tr>
<tr>
<td>Multiscreen Mode </td>
<td>4 / 16 split screen display, 3 / 4 / 6 / 9 / 12 / 16 split screen display on a full screen </td>
</tr>
<tr>
<td>Playback Control </td>
<td>PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Goto Date, Goto Last (30 s) </td>
</tr>
<tr>
<td>Search Mode </td>
<td>Search criteria: Time date, Playback by designating a timeline, VMD </td>
</tr>
<tr>
<td>Copy </td>
<td>Recorded data of selected cameras and time date range can be copied to the SD (SDHC) card. </td>
</tr>
<tr>
<td>Camera Title </td>
<td>Up to 14 characters </td>
</tr>
<tr>
<td>Clock Display </td>
<td>Time: 12H/24H, Date: 5 formats </td>
</tr>
<tr>
<td>Digital Zoom </td>
<td>Live: 2x, 4x, 8x (only for 1-screen or 4-screen) Play: 2x, 4x, 8x </td>
</tr>
<tr>
<td>System Log </td>
<td>Operator access (100), Network error (100), Error (1,000), Event (750) </td>
</tr>
<tr>
<td>System Setup </td>
<td>Setup page in English, French, Italian, Spanish, German, Russian, Japanese </td>
</tr>
<tr>
<td rowspan="14">
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p>Browser GUI </p>
</td>
<td>Camera Control </td>
<td>Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset </td>
</tr>
<tr>
<td>Playback Control </td>
<td>REC, PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Goto Date, Goto Last (30 s) </td>
</tr>
<tr>
<td>Search Mode </td>
<td>Search criteria: Time date, Event type, VMD, Camera number </td>
</tr>
<tr>
<td>Display Mode </td>
<td>1 / 4 screen </td>
</tr>
<tr>
<td>Image Download </td>
<td>Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately. </td>
</tr>
<tr>
<td>Copy </td>
<td>Recorded data of selected cameras and time date range can be copied to the SD (SDHC) card. </td>
</tr>
<tr>
<td>Camera Title </td>
<td>Up to 14 characters </td>
</tr>
<tr>
<td>Clock Display </td>
<td>On the browser. Time: 12H/24H, Date: 5 formats </td>
</tr>
<tr>
<td>Digital Zoom </td>
<td>Live/Play: 2x, 4x (only for 1-screen) </td>
</tr>
<tr>
<td>System Log </td>
<td>Operator access (100), Network error (100), Error (1,000), Event (750) </td>
</tr>
<tr>
<td>GUI Language </td>
<td>English, French, Italian, Spanish, German, Russian, Japanese </td>
</tr>
<tr>
<td>Supported OS and Browser Combination </td>
<td>Microsoft®Windows®7 Professional 64 bit/32 bit & Windows®Internet Explorer®8.0, Microsoft®Windows Vista®Business SP1 32 bit & Windows®Internet Explorer®7.0 The language of OS must be the same as selected GUI language. </td>
</tr>
<tr>
<td>Required PC (for MJPEG/MPEG-4)</td>
<td>VRAM: 128 MB or more (Min. 64 MB), Microsoft®DirectX®9.0c or later </td>
</tr>
<tr>
<td>Required PC (for H.264)</td>
<td>CPU: Intel®Core™ i7-920 or faster, RAM: 3 GB or more,<br />
VRAM: 128 MB or more (Min. 64 MB), Microsoft®DirectX®9.0c or later </td>
</tr>
<tr>
<td rowspan="6">
<p> </p>
<p> </p>
<p> </p>
<p>Alarm/ Event</p>
</td>
<td>Alarm Source</td>
<td>9x Terminal inputs, 16x Camera alarms, Panasonic Alarm Protocol </td>
</tr>
<tr>
<td>Face Matching </td>
<td>Off / On </td>
</tr>
<tr>
<td>Event Mode </td>
<td>Off / On </td>
</tr>
<tr>
<td>Alarm Action </td>
<td>Alarm recording, e-mail notification, Alarm message, Camera positioning, Terminal output, Panasonic alarm protocol output, Buzzer, Indicator </td>
</tr>
<tr>
<td>Alarm Control </td>
<td>Reset </td>
</tr>
<tr>
<td>Event Log </td>
<td>750 </td>
</tr>
<tr>
<td rowspan="9">
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p>Input / Output </p>
</td>
<td>Spot Output Connector </td>
<td>1x 1 V [p-p] / 75 Ω (BNC) </td>
</tr>
<tr>
<td>Monitor (HDMI) Connector </td>
<td>1x HDMI </td>
</tr>
<tr>
<td>Audio Output Connector </td>
<td>1x −10 dBv, 600 Ω, Unbalanced (RCA) </td>
</tr>
<tr>
<td>Alarm/Control Connector (25pin D-sub) - Alarm</td>
<td>Alarm input 1 ~ 9*1 , Alarm output*2 , Alarm reset input*1 , Face matching output*2 </td>
</tr>
<tr>
<td>Alarm/Control Connector (25pin D-sub) - Control</td>
<td>Time adjustment input*1 , +5 V output*3 </td>
</tr>
<tr>
<td>Alarm/Control Connector (25pin D-sub) - Error/Warning</td>
<td>Network error output*2 , HDD error output*2 , Camera error output*2 , Recorder error output*2 , Recording error output*2 </td>
</tr>
<tr>
<td>Mouse Connection Port </td>
<td>1x </td>
</tr>
<tr>
<td>Network Port </td>
<td>1x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ-45) </td>
</tr>
<tr>
<td>SDHC/SD Memory Card Slot </td>
<td>SDHC/SD memory cards applicable (miniSD cards and microSD cards not applicable) </td>
</tr>
<tr>
<td rowspan="8">
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p>Network </p>
</td>
<td>Maximum Bandwidth </td>
<td>Total 80 Mbps or less </td>
</tr>
<tr>
<td>Supported Protocol </td>
<td>TCP/IP, UDP/IP, HTTP, FTP, SMTP, DNS, NTP, SNMP, RTP </td>
</tr>
<tr>
<td>E-mail </td>
<td>Upon Alarm or Warning </td>
</tr>
<tr>
<td>No. of Simultaneous Users </td>
<td>4 or less </td>
</tr>
<tr>
<td>User Registration </td>
<td>Up to 16 users </td>
</tr>
<tr>
<td>User Level </td>
<td>3 Levels (Programmable) </td>
</tr>
<tr>
<td>Partitioning </td>
<td>User level - Camera (View & Control, No Access) </td>
</tr>
<tr>
<td>Security Method </td>
<td>User authentication (ID and Password), Alteration detection </td>
</tr>
<tr>
<td rowspan="2">
<p>Other Functions </p>
</td>
<td>Time Synchronization </td>
<td>Terminal (Slave), NTP (Server/Client) </td>
</tr>
<tr>
<td>Summer Time </td>
<td>User definable (using menu setup) </td>
</tr>
<tr>
<td>HDD </td>
<td>Type </td>
<td>8.89 cm Serial ATA HDD, Up to 2x HDDs can be installed. </td>
</tr>
<tr>
<td rowspan="3">
<p> </p>
<p> </p>
<p>Viewer Software </p>
</td>
<td>Playback Control </td>
<td>Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image </td>
</tr>
<tr>
<td>Additional Functions </td>
<td>Alteration detection, Save as JPEG, Two times zoom, Print, Copy </td>
</tr>
<tr>
<td>Supported OS, Language </td>
<td>Same as browser GUI, Language of the software will be English </td>
</tr>
<tr>
<td rowspan="8">
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p>General Specifications</p>
</td>
<td>Safety/EMC Standard </td>
<td>CE (EN60065, EN55022 ClassB, EN55024), GOST (GOST R 51558) </td>
</tr>
<tr>
<td>Power Source </td>
<td>220 ~ 240 V AC, 50 Hz/60 Hz </td>
</tr>
<tr>
<td>Power Consumption </td>
<td>approx. 45 W </td>
</tr>
<tr>
<td>Ambient Operating Temperature </td>
<td>Main body: +5 °C ~ +45 °C (41 °F ~ 113 °F)<br />
Mouse (provided): +5 °C ~ +40 °C (41 °F ~ 104 °F) </td>
</tr>
<tr>
<td>Ambient Operating Humidity </td>
<td>5 % ~ 90 % (without condensation) </td>
</tr>
<tr>
<td>Maximum Operating Altitude </td>
<td>2,000 m (6,562 feet) above sea level </td>
</tr>
<tr>
<td>Dimensions </td>
<td>42.0 cm (W) x 8.8 cm (H) x 30.0 cm (D) (excluding rubber feet and projections) </td>
</tr>
<tr>
<td>Mass (approx.) </td>
<td>4.8 kg (10.6 lbs.) without HDD<br />
5.6 kg (12.36 lbs.) with 1 HDD<br />
6.4 kg (14.13 lbs.) with 2 HDDs </td>
</tr>
<tr>
<td colspan="2">
<p> </p>
<p>Note </p>
</td>
<td>*1: Non-voltage make contact input, 50 kΩ +5 V DC pull-up<br />
*2: Open collector output, 24 V DC, 100 mA max.<br />
*3: 200 mA max. </td>
