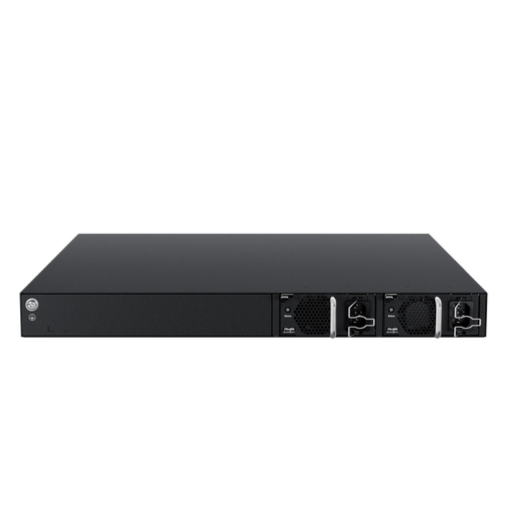

RUIJIE REYEE RG-CS83-24GT4XS-PD

Product Category

• Layer 3

Port Specifications

• Fixed service ports 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+, 4 x 1GE/10GE SFP+ ports
• Module slot 2 x power module slots
• Power module RG-PA600I-P-F, RG-PA1000I-P-F
• Fixed management port 1 x RJ45 console port, 1 x RJ45 MGMT port
• 1 x USB port

System Specifications

• Forwarding rate 96 Mpps
• Switching capacity 128 Gbps(bit/s)
• Dual-core CPU, each core with the clock speed of 1.0 GHz
• BootROOM 16MB
• Flash memory 2 GB
• Memory 1 GB
• Switch buffer 3 MB
• MAC address table size 32,000
• ARP table size 4,000
•

Dimensions and Weight

• 570 mm x 565 mm x 172 mm, 1RU , 6.78 kg

Power supply and Consumption

• 65 W (non-PoE)
• 810 W (full PoE load)

Environment and Reliability

• Operating temperature: 0°C to 45°C (32°F to 113°F)
• Storage temperature: –40°C to +70°C (–40°F to +158°F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Storage humidity: 5% to 95% RH (non-condensing)
• Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
• Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
• MTBF 356,000 hours
• Fanless design, natural heat dissipation
• Acoustic noise 27°C (80.6°F): 51.6 Db, 45°C (113°F): 57.4 dB

Lonjakan Daya Port

• 6 kV

Security

• Port isolation
• Global IP-MAC binding
