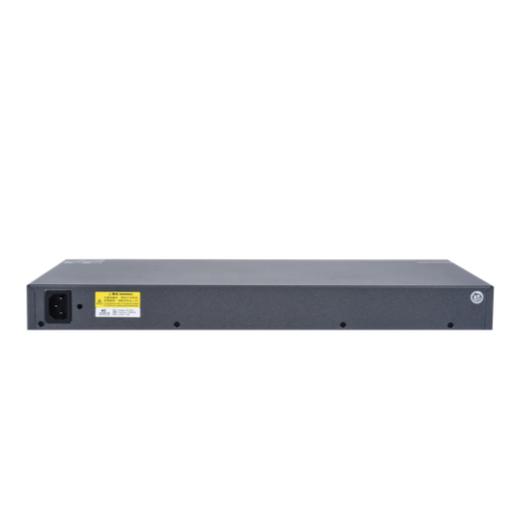

RUIJIE REYEE RG-CS83-48GT4XS

Product Category

• Layer 3

Port Specifications

• Fixed service ports 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+, 4 x 1GE/10GE SFP+ ports
• Fixed management port 1 x RJ45 console port
• 1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested)

System Specifications

• Forwarding rate 132 Mpps
• Switching capacity 176 Gbps(bit/s)
• Dual-core CPU, each core with the clock speed of 1.0 GHz
• BootROOM 16MB
• Flash memory 512 MB
• Memory 1 GB
• Switch buffer 1.5 MB
• MAC address table size 4,000

Dimensions and Weight

• 540 mm x 338 mm x 154 mm, 1RU , 4.1 kg

Power supply and Consumption

• 40 W

Environment and Reliability

• Operating temperature: 0°C to 45°C (32°F to 113°F)
• Storage temperature: –40°C to +70°C (–40°F to +158°F)
• Operating humidity: 10% to 90% RH (non-condensing)
• Storage humidity: 5% to 95% RH (non-condensing)
• Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
• Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
• MTBF 207,962 hours
• Fanless design, natural heat dissipation
• Acoustic noise 27℃ (80.6°F): 32 dB

Lonjakan Daya Port

• 6 kV

Ukuran (P x L x T) & Berat

• 440 mm x 267.5 mm x 43.6 mm, 3.6 kg

Security

• Port isolation
• Global IP-MAC binding
