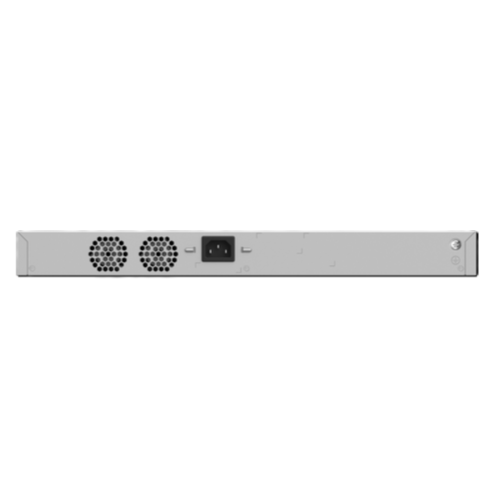

RUIJIE REYEE RG-NBF5200M-8FS16GT4XS

Key Specification

Ports

• 8 x 1G PON/SFP Ports + 16 x 1G Ethernet Ports + 4 x 10G SFP+ Ports

Net Weight

• 2.9kg

Number of Fan Modules

• 2

Switching Capacity

• 216 Gbps

Forwarding Rate

• 96 Mpps

Dimensions (W x D x H)

• 440 mm x 260 mm x 43.6 mm
  (17.32 in. x 10.24 in. x 1.72 in.)

Mean Time Between Failure (MTBF)

• > 400000 hours

Power Supply Surge Protection

• Common: 6 Kv
• Differential: 6 kV

Max. Number of VLANs

• 4094

MAC Address Table Size

• 16000

ARP Table Size

• 2000

Certification

• CE, CB, SDPPI, IPV6, SIRIM

Model

RG-NBF5200M-8FS16GT4XS

Basic

Number of 1000BASE-T Ports

• 16

Number of 1G PON/SFP Ports

• 8

Number of 10G SFP+ Ports

• 4

Total Number of Optical Ports

• 12

Total Number of Ethernet Ports

• 16

Number of Management Ports

• N

Recommended Client Limits

• 1200

Recommended Camera Limits

• 2 MP H265:400
  4 MP H265:200
  8 MP H265:100

PoE Support

• N

Max. Power Consumption

• 41.8 W

Device Dimensions (W x D x H)

• 440 mm x 260 mm x 43.6 mm
  (17.32 in. x 10.24 in. x 1.7173 in.)

Switching Capacity

• 216Gbps

Forwarding Rate

• 96Mpps

Power Supply Surge Protection

• Common 6 kV
  Differential 6 kV

Port Surge Protection

• Common 6 kV

Temperature Alarm

• Y

Operating Temperature

• 0°C to 50°C (32°F to 122°F)

EMC

• GB/T 9254.1-2021

Casing

• Iron

Mounting

• Rack-mount

Power Supply Options

• Fixed power module

Buttons (Reset Button Excluded)

• 0

Gross Weight

• 4.02 kg (8.86 lbs.)

Net Weight

• 2.9 kg (6.39 lbs.)

Software Features

VLAN

• Y

N:1 Mirroring

• Y

DHCP Server

• Y

MAC-based Extended ACL

• Y

IP-based Extended ACL

• Y

Ingress ACL on Layer 2 Physical or Logical Interfaces

• Y

Virtual Cluster Switching (VCS)

• Y

Layer 3 Support

• Y

MAC Address Table Size

• 16000

Static MAC Address

• Y

MAC Address Filtering

• 256

Max. Number of SVIs

• 32

Port-Level Rate Limiting (Ingress/Egress)

• Y

Max. Number of Layer 3 Aggregate Interfaces

• 15

Hardware-based CPU Protection Policy (CPP)

• Y

Ruijie Rapid Link Detection Protocol (RLDP)

• Y

IPv6

• Y

IGMP Snooping

• Y

Hardware Specifications

Number of and Length of Power Cords

• 1.5m

Max. Number of ONUs (APs and Access Switches)

• 300

IP-based Standard ACL

• Y

PON/Ethernet Optical Transceiver Auto-Sensing

• Y

1G PON Optical Transceivers

• Y

2.5G PON Optical Transceivers

• N

10G PON Optical Transceivers

• N

Alerting of Non-Ruijie PON Optical Transceivers

• N

Number of ONUs per 1G PON Port

• 32

Number of ONUs of All 1G PON Ports per Device

• 256

Number of 1G PON Ports

• 8

Total Number of PON Ports

• 8

Max. Number of PON Ports per Device

• 8

RTT-based Distance Measurement

• Y

Accuracy of Ranging Between OLT and ONU

• 100 m (328.08 ft.)

Layer 2 Isolation for ONUs Connected to the Same OLT Port
(disabled by default)

• Y

Max. Registration Distance for Eligible ONUs
(Default: 5 km, Maximum: 10 km)

• Y

Static Bandwidth Allocation (SBA): Fixed Bandwidth for ONUs

• Y

Dynamic Bandwidth Allocation (DBA): Maximum Bandwidth for ONUs

• Y

OLT Displaying OLT Optical Transceiver Info
(Temperature/Voltage/Current/Tx Power/Rx Power/Port Mode)

• Y

OLT Displaying ONU Optical Transceiver Info
(Temperature/Voltage/Current/Tx Power/Rx Power/Port Mode)

• Y

ONU Optical Transceiver Exception Reporting on OLT
(Abnormal Temperature, Voltage, Current, and Tx/Rx Power)

• Y

OLT Automatically Connecting ONUs

• Y

Type B Dual-homing Protection

• N

Type D Dual-homing Protection

• N

Reset Button

• Y

Automatic Resolution of Management Port IP Address Conflict

• N

Storage Temperature

• –40°C to +70°C
  (–40°F to +158°F)

Operating Humidity

• 10% to 90% RH

Storage Humidity

• 5% to 95% RH

IP Rating

• IP20
