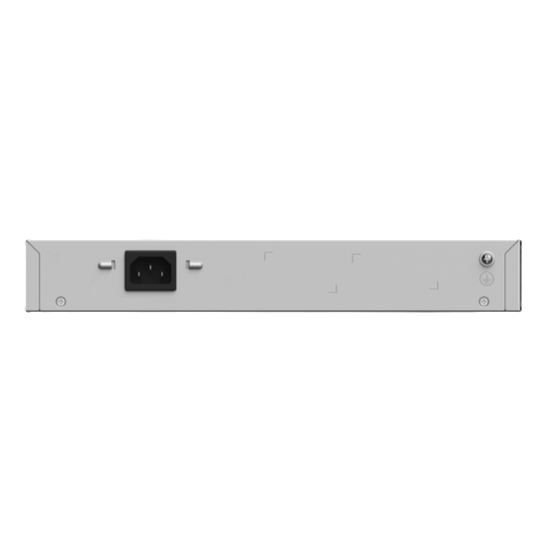

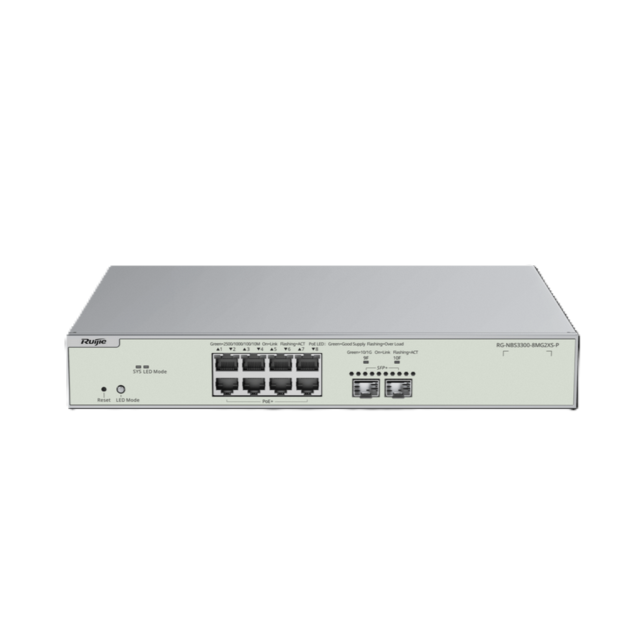

RUIJIE REYEE RG-NBS3300-8MG2XS-P

Product Category

• Layer 2+

Port Specifications

• 8x Total number of RJ45 ports
• 2x Total number of optical ports
• 2x Number of 10GE SFP+ ports
• 8x Number of 10/100/1000/2500BASE-T ports

Power Supply and Consumption

• 8x Number of PoE Out ports
• 8 x Number of PoE/PoE+ Out ports
• PoE budget 240 W
• PoE power pins 1–2 (+), 3–6 (-)

System Specifications

• Forwarding rate  59.52 Mpps
• Switching capacity 80 Gbps(bit/s)

Environment and Reliability

• MTBF 400,000 hours
• Operating temperature 0°C to +50°C (32°F to 122°F)
• Altitude Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
• Surge protection Service port: ±6 kV for common mode
  Power connector: ±6 kV for both common mode and differential mode

Basic Configurations

• PoE watchdog

Interface

• Jumbo frame length (MTU) 9216 bytes (interface configuration mode)

Security

• Port isolation

		<ul>
			<li>Broadcast storm control</li>
		</ul>
