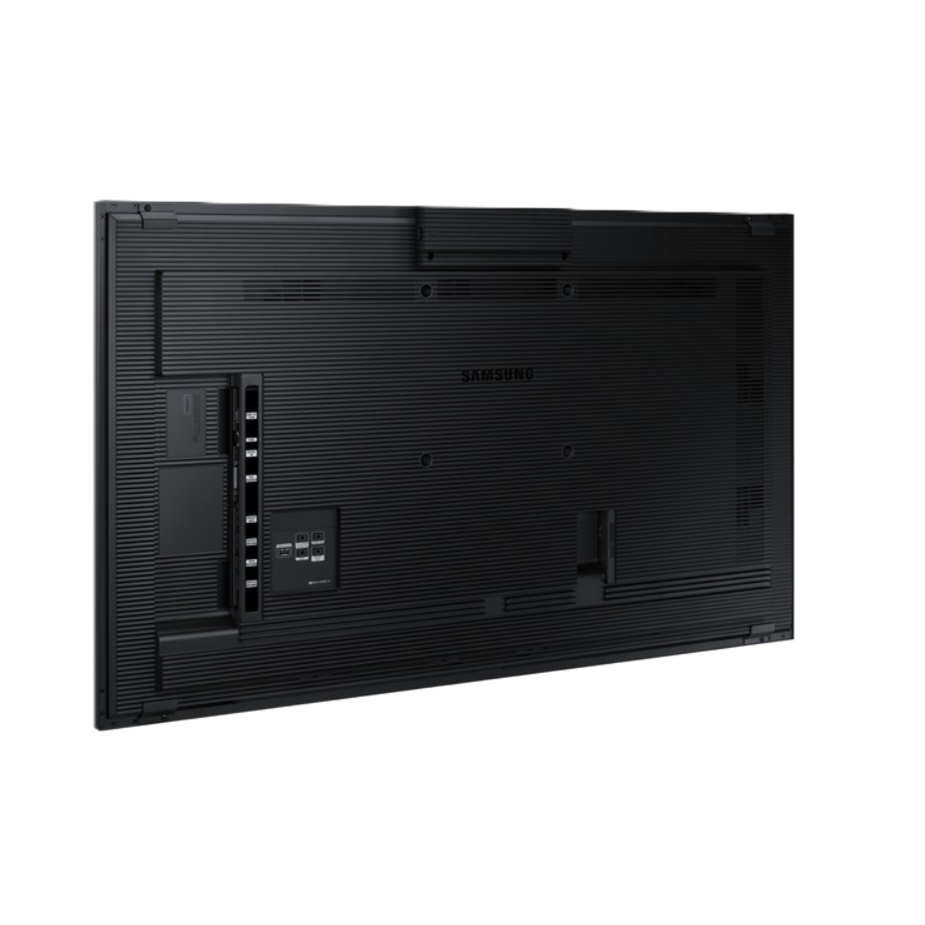

Samsung Digital Signage Touch Screen 32 inch - QM32R-T

Display

• Diagonal Size 32"
• Panel Type New Edge, 60Hz
• Resolution 1,920 x 1,080
• Pixel Pitch (HxV) 0.36375 x 0.36375 (mm)
• Brightness (Typ) 400(without glass), 300(with glass)
• Contrast Ratio 5000:1(without glass)
• Viewing Angle (H/V) 178/178
• Response Time 8ms
• Color Gamut 72%
• Glass Haze 2% (without Glass)
• H-Scanning Frequency 30 ~ 81kHZ
• Maximum Pixel Frequency 594MHz
• V-Scanning Frequency 48 ~ 75HZ
• Contrast Ratio (Dynamic) Mega DCR

Connectivity

• HDMI In 2
• DP In Yes
• Version of HDMI 2
• Version of DP 1.2
• Version of HDCP 2.2
• USB 2
• IR In Yes
• HD BaseT In No
• Audio In No
• Audio Out Stereo Mini Jack
• Video Out Yes
• RS232 In Yes
• RS232 Out Yes
• RJ45 In Yes
• RJ45 Out No
• WiFi Yes
• 3G Dongle No
• Bluetooth Yes

Power

• Power Supply AC100-240V 50/60Hz
• Power Consumption (On Mode) 72 W
• Power Consumption (Sleep Mode) 0.5 W

Dimension

• Set Dimension (WxHxD) 744.4 x 444.6 x 48.2 mm
• Package Dimension (WxHxD) 872 x 565 x 133 mm

Mechanical Specification

• VESA Mount 200 x 200 mm
• Bezel Color Charcoal Black
• Frame Material Non-Glossy w

Optional Feature

		<p>&nbsp;</p>
		</td>
		<td style="height:9.25pt; vertical-align:top; width:321.45pt">
		<ul>
			<li><strong>Touch</strong> Yes</li>
			<li><strong>Mount</strong> WMN4070SE</li>
			<li><strong>Stand</strong> STN-L3240F</li>
		</ul>
		</td>
	</tr>
</tbody>
