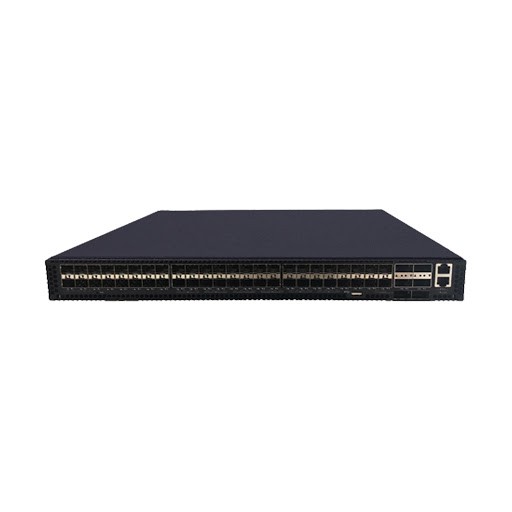

Sundray Smart Switch RS6500-54Q-EI-48X
The machine provides 48 10 Gigabit SFP+ optical ports, 6 40G QSFP+ optical ports, dual power supply redundancy; | Support fat and thin mode switching, zero configuration online management in thin mode, realize plug and play; | Support wireless AC centralized configuration management, including port information, VLAN, port switch, etc.; | Support visual status check, including switch load, forwarding load, online status, switch status; | With security features, support linkage with wireless network equipment and security equipment to achieve safer network management and control; | To meet the needs of large-scale networking, suitable for large-scale campus network, enterprise network, IP metropolitan area network construction access equipment;
Deskripsi Produk
| model | RS6500-54Q-EI-48X | Applicable scene | Enterprise network, campus network, metropolitan area network |
| Number of interfaces | 48*10 Gigabit SFP+ optical port; | Other interface | 1*CONSOLE port; |
| 6*40G QSFP+ interface. | 1*MANAGE mouth; | ||
| 1*USB2.0 port. | |||
| Exchange capacity | 2.56Tbps/40.96Tbps | Packet forwarding rate | 1080Mpps |
| Access method | Fat and thin one (support switching) | Online method | Layer 2 broadcast/static IP address/DHCP Option43/DNS domain name |
| Spanning tree | STP, RSTP, MSTP protocols | Routing function | Support IPv4/IPv6 static routing; |
| Support RIPv1/2, OSPF and other IPv4 dynamic routing; | |||
| Support IPv4 policy routing; | |||
| ARP table ≥80K | |||
| Multicast | Multicast entries ≥ 8K | VLAN | 4K |
| Support IGMP v1/v2/v3 snooping | |||
| Mirror | Support port mirroring | Flow Control | Support ACL, QoS |
| Access security | Support DHCP Server, DHCP Relay; | reliability | Support VRRP, BFD for VRRP; |
| Support DHCP Snooping; | Support BFD for RIP/OSFP/static routing/policy routing; | ||
| Support Portal authentication; | Support Smartlink (backup link); | ||
| Support 802.1X authentication; | Support Monitor-link (uplink monitoring) | ||
| Support blacklist and whitelist | |||
| MAC | 160K, support automatic learning, filtering, learning limit | Security features | Anti-ARP spoofing, administrator hierarchical management, port protection/isolation, anti-DOS/ARP attack, CPU protection, border terminal security management |
| Port aggregation | 128, support manual, static LACP | Virtualization | Support vUnit (stacking technology, virtualize multiple devices into one); |
| Support M-LAG, cross-device link aggregation, paired devices have independent control plane | |||
| Network management | APP remote management, remote management across WAN/NAT | Switch portrait | Support visual viewing |
| power supply | Dual redundant AC power module design | Maximum power consumption of the whole machine | ≦300W |
| Safety | FCC, CE, RoHS | EEE | Energy-saving technology supporting IEEE 802.3az standard |
