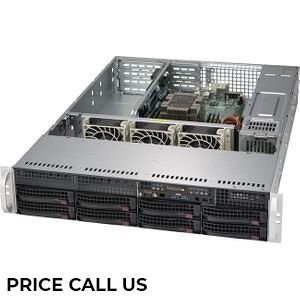

SUPERMICRO SuperServer SYS-5029P-WTR

Model

Brand

SUPERMICRO

Model

SYS-5029P-WTR

CPU Supported

CPU Type

Single Socket P (LGA 3647)
Intel Xeon Scalable Processors
Support CPU TDP 70-205W

CPU Socket

LGA 3647

Chipset

North Bridge

Intel C622

Memory Supported

Max Memory Supported

Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666 MHz

Memory Type Supported

2666 / 2400 / 2133 MHz ECC DDR4 SDRAM

Storage Supported

Serial ATA

10 x SATA 600

SATA RAID

RAID 0/1/5/10

Expansion Slots

PCI Express

4 x PCI-E 3.0 x8 (FHFL) slots
1 x PCI-E 3.0 x8 (LP) slot

Communications

Number of LAN

Dual 10GBase-T LAN with Intel X772 + X557

Expansion Bays

Hot-Swap Bays

8 x Hot-swap 3.5" SATA3 drive bays

Panel Ports

Rear USB

2 x USB 3.0 ports
2 x USB 2.0 ports

RJ45

2 x RJ45 10GBase-T LAN ports
1 x RJ45 dedicated IPMI LAN port

Power Supply

Max. Power

500W high-efficiency redundant power supplies with PMBus

Features

Features

Single socket P (LGA 3647) supports Intel Xeon Scalable Processors

Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666 MHz; 6 x DIMM slots

4 x PCI-E 3.0 x8 (FHFL) slots, 1 x PCI-E 3.0 x8 (LP) slot

8 x Hot-swap 3.5" SATA3 drive bays

2 x 10GBase-T ports with Intel X772 + X557

1 x VGA, 2 x COM, 2 x USB 3.0, 2 x USB 2.0

2 x SuperDOM (Disk on Module) ports

500W Redundant Platinum Level power supplies

Dimensions & Weight

Dimensions

3.50" x 17.20" x 25.60"
