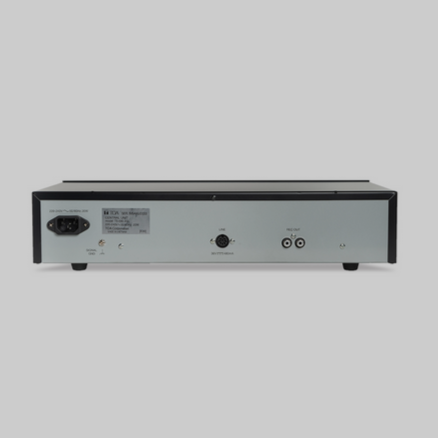

TOA TS-690-AS

Power Source: 220 - 240 V AC, 50/60 Hz | Power Consumption: 20 W | Rated Output: 36 V DC, 480 mA | Input Selectable : MIC or AUX | Mic: -60dB*, 600 Ω, unbalanced, phone jack | AUX: -20 dB*, 10 kΩ, unbalanced, phone jack | Output Recording: -20dB*, 10 kΩ, unbalanced, RCA jack | Number of Connectable Units Max. 24 units | Control Priority speech chime: Operation of TS-691L-AS priority button activates a single-tone chime | Speaker restriction: Number of simultaneously-usable TS-692L-AS can be set up to 0-3 | Automatic Mic-Off Function: OFF, 30s (selectable) | Operating Temperature 0 °C to +40 °C (32 °F to 104 °F) | Operating Humidity 90 %RH or less (no condensation) | Finish Panel: Aluminum, black. 30% gloss, paint | Case: Steel plate, black, 30% gloss, paint | Dimensions 420(W) x 96.1 (H) x 222.5(D) mm (16.54” x 3.78” x 8.76”) | Weight 2.7 kg (5.95 lb) | Accessory Power Cord (2m) x 1 | Option Extension cord: YR-790-3, YR-790-10 | Rack mounting bracket: MB-23B
