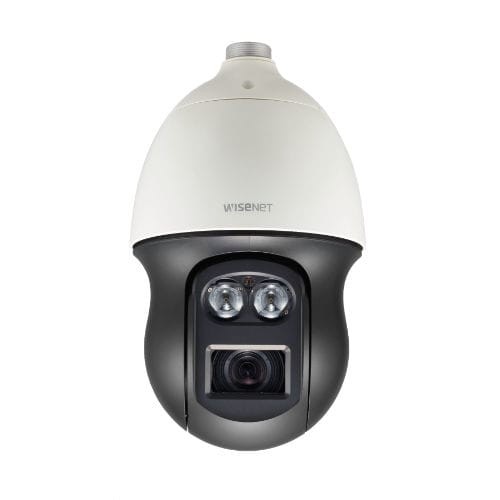

Wisenet X PTZ XNP-6250RH
4.44 ~ 111mm (Optical 25x) lens | Day & Night (ICR), WDR (150dB) | DIS with built-in gyro sensor | Intelligent Video/Audio Analytics, Shock detection | Max. IR viewable length 200m | IP66, IK10
Deskripsi Produk
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS | |
| Effective Pixels | 1944(H)x1212(V) | |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 4.44~111mm(25x) zoom | |
| Max. Aperture Ratio | F1.6(Wide)~F3.9(Tele) | |
| Angular Field of View | H: 61.8˚(Wide)~2.84˚(Tele) / V: 36.2˚(Wide)~1.60˚(Tele) | |
| Min. Object Distance | Wide: 1.5m(4.92ft), Tele: 2m(6.56ft) | |
| Focus Control | Oneshot AF | |
| Lens Type | DC auto iris | |
| Pan / Tilt / Rotate | ||
| Pan Range | 360˚ Endless | |
| Pan Speed | Preset: 400˚/sec, Manual: 0.024˚/sec~250˚/sec | |
| Tilt Range | 95˚(-5˚~90˚) | |
| Tilt Speed | Preset: 250˚/sec, Manual: 0.024˚/sec~250˚/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | ±0.2˚ | |
| Azimuth | Support | |
| Auto Tracking | Support | |
| Operational | ||
| IR Viewable Length | 200m(656.17ft) | |
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | 150dB | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics | Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm I/O | Input 4ea / Output 2ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) | |
| Video Compression | H.265/H.264,MJPEG | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
|
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB | |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
|
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | 24VAC : -50°C~+55°C (-58°F ~ +131°F) / Less than 90% RH HPoE : -40°C~+55°C (-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C |
|
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH | |
| Certification | IP66, IK10 | |
| Electrical | ||
| Input Voltage | 24VAC, HPoE(IEEE802.3bt, Class7) | |
| Power Consumption | 24VAC: Max. 83W (typical : 30W) HPoE : Max. 51W (typical : 30W) |
|
| Mechanical | ||
| Color / Material | Body: Ivory / Plastic, Head: Black / Plastic | |
| Product dimensions / weight | Ø236.9x407.7mm(9.33x16.05"), 6.8Kg(14.99 lb) | |
Informasi & Panduan
Beli Wisenet X PTZ XNP-6250RH Original & Bergaransi Resmi di Ouffice
Wisenet X PTZ XNP-6250RH tersedia di Ouffice dengan jaminan produk original bergaransi resmi. Kami adalah authorized reseller resmi yang bersumber langsung dari distributor di Indonesia.
Produk ini masuk dalam kategori PTZ IP Camera dari Wisenet. Dapatkan harga terbaik dengan menghubungi tim sales kami melalui WhatsApp, konsultasi gratis tanpa kewajiban beli.
Ouffice melayani pembelian satuan maupun pengadaan dalam jumlah besar untuk perusahaan, instansi pemerintah, dan lembaga pendidikan di seluruh Indonesia.
Garansi & Layanan Purna Jual Wisenet X PTZ XNP-6250RH
Unit Wisenet X PTZ XNP-6250RH yang Anda beli melalui Ouffice dilengkapi dengan garansi resmi produsen. Proses klaim garansi dapat dilakukan langsung melalui service center resmi Wisenet di Indonesia.
Kami juga menyediakan layanan konsultasi teknis pasca-pembelian untuk membantu instalasi, konfigurasi awal, dan troubleshooting dasar tanpa biaya tambahan.
Mengapa Membeli Wisenet X PTZ XNP-6250RH di Ouffice?
Produk Original. 100% resmi, bukan rekondisi atau parallel import. Setiap unit memiliki serial number yang dapat diverifikasi ke produsen.
Harga Bersaing. Bandingkan harga kami sebelum memutuskan. Untuk pembelian volume, kami memberikan penawaran harga khusus.
Pengiriman Aman. Dikemas dengan standar pengiriman produk elektronik dan dikirim ke seluruh Indonesia dengan jasa pengiriman terpercaya.
Hubungi kami sekarang melalui WhatsApp atau lihat produk PTZ IP Camera lainnya di Ouffice.
